自吸泵主要技術參數
Main technical parameter of self-priming pump
|
性能 Capability
|
主要技術參數
Main technical parameter
|
|
流量 Flow
|
10-20m/h
|
|
總揚程 Total distance
|
18-20m
|
|
其中吸程
|
5-6m
|
|
葉輪輪輻直徑 impeller diameter
|
Φ189mm
|
|
進出口管徑 Entrance & Exit diameter
|
Φ51mm
|
|
電動機型號Electromtor type
|
Y112-4
|
|
功率power
|
4KW（380V.50HZ)
|
|
轉速Rotanting speed
|
1420r/min
|
|
外形尺寸（長×寬×高） Size (L×W×H）
|
600×350×420
|
|
機器重量Weight
|
55kg
|
|
離心泵主要技術參數
Main technical parameter of centrifugal pump
|
型號Type
|
流量（噸/小時）Flow(ton/h)
|
揚程（米水柱）Distance (Mwater column)
|
電機功率electricpower
|
進出口徑entrance&exit diameter
|
|
|
TLW-1.5-14
|
1.5
|
14
|
0.5
|
40/25
|
32/25
|
|
TLW-3-14
|
2
|
14
|
1.1
|
40/32
|
38/38
|
|
TLW-5-24
|
5
|
24
|
1.5
|
50/40
|
51/38
|
|
TLW-5-32
|
5
|
32
|
2.2
|
50/40
|
51/38
|
|
TLW-10-24
|
10
|
24
|
2.2
|
50/40
|
51/38
|
|
TLW-10-36
|
10
|
36
|
3
|
50/40
|
51/38
|
|
TLW-15-24
|
15
|
24
|
3
|
50
|
51
|
|
TLW-20-24
|
20
|
24
|
4
|
50
|
51
|
|
TLW-20-36
|
20
|
36
|
5.5
|
50
|
51
|
|
TLW-25-24
|
25
|
24
|
4
|
50/50
|
51/51
|
|
TLW-30-24
|
30
|
24
|
5.5
|
65/50
|
63/51
|
|
TLW-30-36
|
30
|
36
|
7.5
|
65/50
|
63/51
|
|
TLW-30-60
|
30
|
60
|
11
|
65/50
|
63/51
|
|
TLW-35-36
|
35
|
36
|
11
|
65/50
|
76/63
|
|
TLW-40-36
|
40
|
36
|
11
|
80/65
|
76/63
|
|
TLW-40-45
|
40
|
45
|
11
|
80/65
|
101.6/76
|
|
TLW-50-36
|
50
|
36
|
11
|
80/65
|
101.6/76
|
|
TLW-80-30
|
80
|
30
|
15
|
100/85
|
|
|
TLW-80-40
|
80
|
40
|
18.5
|
100/85
|
|
|
TLW-100T-40
|
100
|
40
|
22
|
125/100
|
|
|
TLW-100T-70
|
100
|
70
|
33
|
125/100
|
|

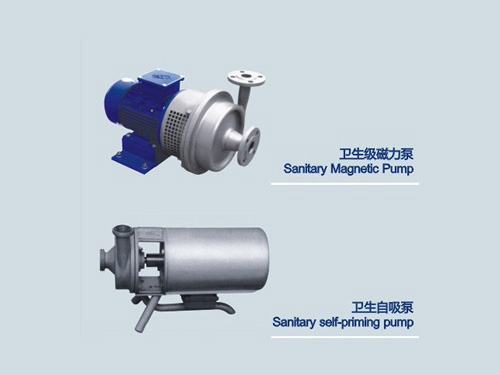

衛生級磁力泵主要技術參數
Main technical parameter of sanitary magnetic pump
|
型號Type
|
建議選用流量范圍(t/h)
|
功率（KW）
|
揚程
|
進口口徑
|
出口
口徑
|
|
TLCLP1-100(B)
|
0.5-1.5
|
0.37
|
8-4
|
25
|
25
|
|
TLCLP1-120(B)
|
0.5-1.5
|
0.55
|
15-10
|
25
|
25
|
|
TLCLP3-110(B)
|
2-4
|
0.55
|
11-7
|
38
|
25
|
|
TLCLP3-120(B)
|
2-4
|
0.75
|
15-9
|
38
|
25
|
|
TLCLP3-140(B)
|
2-5
|
1.1
|
24-12
|
38
|
25
|
|
TLCLP5-140(B)
|
4-8
|
1.1
|
22-12
|
50.8
|
32
|
|
TLCLP5-150(B)
|
4-8
|
1.5
|
27-19
|
50.8
|
32
|
|
TLCLP5-165(B)
|
4-8
|
2.2
|
33-27
|
50.8
|
32
|
|
TLCLP5-180(B)
|
4-8
|
3
|
42-35
|
50.8
|
32
|
|
TLCLP10-150(B)
|
7-14
|
2.2
|
24-13
|
50.8
|
38
|
|
TLCLP10-165(B)
|
7-14
|
3
|
32-23
|
50.8
|
38
|
|
TLCLP10-175(B)
|
7-14
|
4
|
37-31
|
50.8
|
38
|
|
TLCLP10-182(B)
|
7-14
|
4
|
42-37
|
50.8
|
38
|
|
TLCLP20-165(B)
|
16-25
|
4
|
29-21
|
50.8
|
50.8
|
|
TLCLP20-180(B)
|
16-25
|
5.5
|
36-28
|
50.8
|
50.8
|
|
TLCLP20-192(B)
|
16-25
|
7.5
|
44-36
|
50.8
|
50.8
|
|
TLCLP20-210(B)
|
16-25
|
7.5
|
52-46
|
50.8
|
50.8
|
|
TLCLP30-165(B)
|
22-40
|
5.5
|
29-18
|
63.5
|
50.8
|
|
TLCLP30-180(B)
|
22-40
|
7.5
|
38-28
|
63.5
|
50.8
|
|
TLCLP30-192(B)
|
22-40
|
7.5
|
45-36
|
63.5
|
50.8
|
|
TLCLP30-210(B)
|
22-40
|
11
|
51-45
|
63.5
|
50.8
|
|
TLCLP50-165(B)
|
42-60
|
7.5
|
29-21
|
76
|
63.5
|
|
TLCLP50-180(B)
|
42-60
|
11
|
37-29
|
76
|
63.5
|
|
TLCLP50-192(B)
|
42-60
|
11
|
43-36
|
76
|
63.5
|
|
TLCLP50-210(B)
|
42-60
|
15
|
51-46
|
76
|
63.5
|
|
